Overview

The safety exit. Above and before either strategy exit sits an adverse-movement check. A mean-reversion position is offside by construction for a while, so being offside cannot be the exit test; the real warning sign is being offside and watching the fractile keep stepping further offside. That is precisely what a low D_k reading on the wrong side of the median describes, and it is the one exit that ignores the minimum-profit setting entirely, because it is not trying to book a target but to stop feeding a trend that has already turned against the trade.

When it fires on a loss it also blocks re-entry on that same side until the fractile crosses back over the median, so the strategy cannot immediately hand the market the same losing trade again. If the range is expanding at that moment, the EA takes the opposite side instead, on the reasoning that a mean-reversion signal which keeps failing is evidence of a trend rather than of a better price. Those two trend-follow legs are the only part of the system that is not symmetric.

Classic MACD strategy made fully automatic – the MACD Expert Advisor for MT4 handles it all. Check it out.

Recommended Setup

Key Features

Faithful to the paper

• All four cross-strategies are implemented, the two reverse legs and the two revert legs, not a simplified pair.
• The Adaptive Crossover Exit switches between the Full Distribution Crossover and the Extremum Revert Trigger by regime, exactly as the paper specifies.
• The fractile is the paper's appendix definition, the plain empirical CDF of the window. Where the paper's prose and its appendix disagree, the appendix wins and the discrepancy is documented in the source rather than silently patched.

One calculation, in one place

• Every number the rules read comes from RMA_Engine through CopyBuffer, so the chart and the trades cannot drift apart. There is no second implementation of the mathematics to keep in step.
• The rules live in a class that never calls OrderSend, reads a position, or prints. It is handed a ten-field bar structure and returns an instruction, which is what makes the strategy testable without a broker.
• Order placement, bookkeeping, and risk live in a separate class, kept apart from the rules for the same reason.

Decisions on final data only

• Buffers are read from position 1, never 0. Bar zero is still forming and every rule is written about a bar whose close is final.
• A warmup bar, a gap in the history, or an engine that has not calculated yet all produce the same answer: no decision on this bar. Nothing is inferred from a missing reading.
• Whether the account was open is settled before anything acts on it, so a bar is either an exit bar or an entry bar, never both.

Execution that survives a real broker

• A close-and-reverse asks the broker to flatten at the moment the opposite trade is due, and the broker does not always oblige on the first attempt. Refused closes are latched and retried on every tick until they fill, rather than dropped, and a reversal is never stacked on top of a position that is still running.
• The entry is booked against the price actually filled, not the price requested, so slippage does not leak into the pip figures that feed the exit rules and the optimisation score.
• Lot size is clamped to the symbol's minimum, maximum, and step.
• The open leg is persisted to global variables, so a position that outlives a terminal restart is picked back up as the trade it actually was rather than as an orphan.

Operational controls

• Optional fixed stop loss and take profit in pips, an optional session filter that correctly handles a window running through midnight, and an optional end-of-session flatten. These are deployment controls rather than part of the framework: the paper concerns itself with the signal and leaves the risk envelope to the operator.
• An optional on-chart status block showing the current fractile, regime, and leg, with entry and exit markers, plus a verbose mode that journals every refusal and the reason for it. Both are off by default, so the EA trades silently.
• A custom optimisation criterion returning net pips weighted by the square root of the trade count and the win rate, so a run of four hundred trades outranks one of forty at the same net result without letting trade count dominate outright. Runs under ten trades score zero.

Backtest Results

A single run on EURUSD, H2, from 2025.05.01 to 2026.07.26, roughly fourteen months, on 100% real ticks with a 10,000 USD deposit at 1:500.

The win rate sits just under half, and the system stays profitable because the average win is larger than the average loss, which is the payoff profile of a mean-reversion strategy that lets its reversals run. Longs and shorts perform almost identically, as expected from a framework that is symmetric by construction.

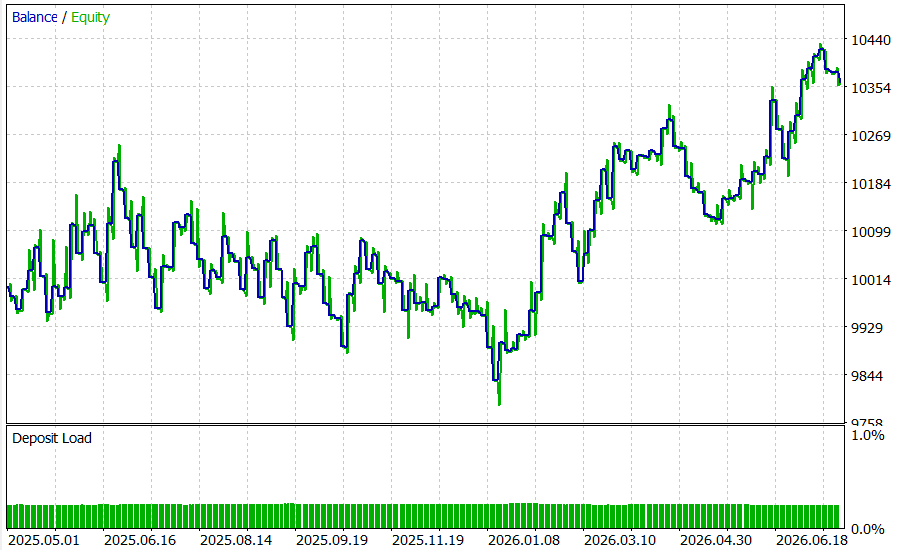

The equity curve over the test period: steady participation with shallow drawdowns rather than a single lucky run.

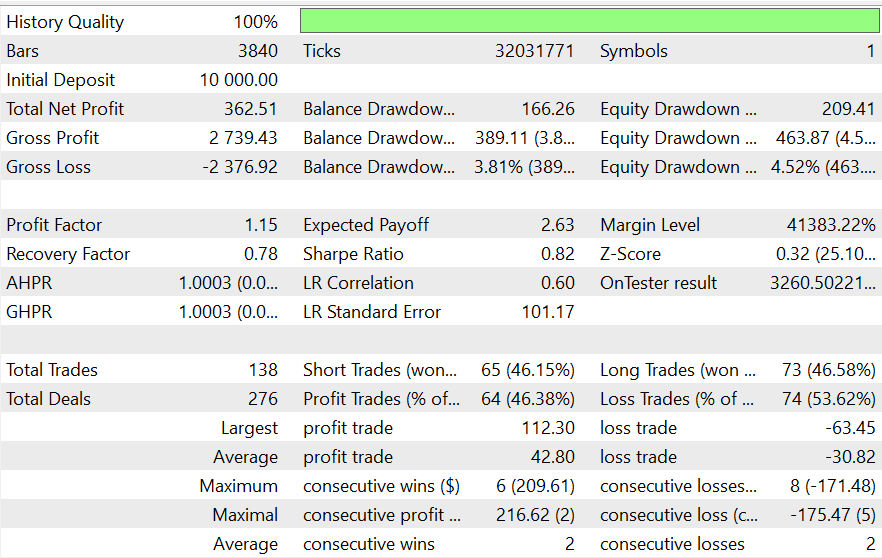

The full Strategy Tester report for the run, showing the settings, the trade statistics, and the balance and equity curves.

Installation and File Structure

One Expert Advisor, one required indicator, one optional panel, and seven headers. The layout matters: the EA loads the engine by the relative path RMA\RMA_Engine and the headers are included as <RMA\...>, so each file must sit in its RMA subfolder. Compile the indicators before the EA.

Input Parameters

Nine input groups. The first two are forwarded to the engine and change what it computes; the rest govern the rules, the orders, and the display.

Research Basis

The implementation follows:

• Daniel Alexandre Bloch, A Course on Systematic Trading with RMA, available on SSRN.

The paper contributes the framework and its mechanics: the fractile representation, the four cross-strategies, and the Adaptive Crossover Exit that selects between them by regime. It does not contribute a track record, since its Results section is left as future work in the version in hand. The value on offer is a strategy expressed on a scale that means the same thing on every instrument, and a foundation for your own testing on other symbols and timeframes or with the window calibrated per asset, as the paper intends.

A companion article derives the mathematics, walks through the implementation of every module, and explains each of the four legs and the exit logic in detail: Bloch's Relative Moving Average (RMA) Framework Implementation In MQL5.
